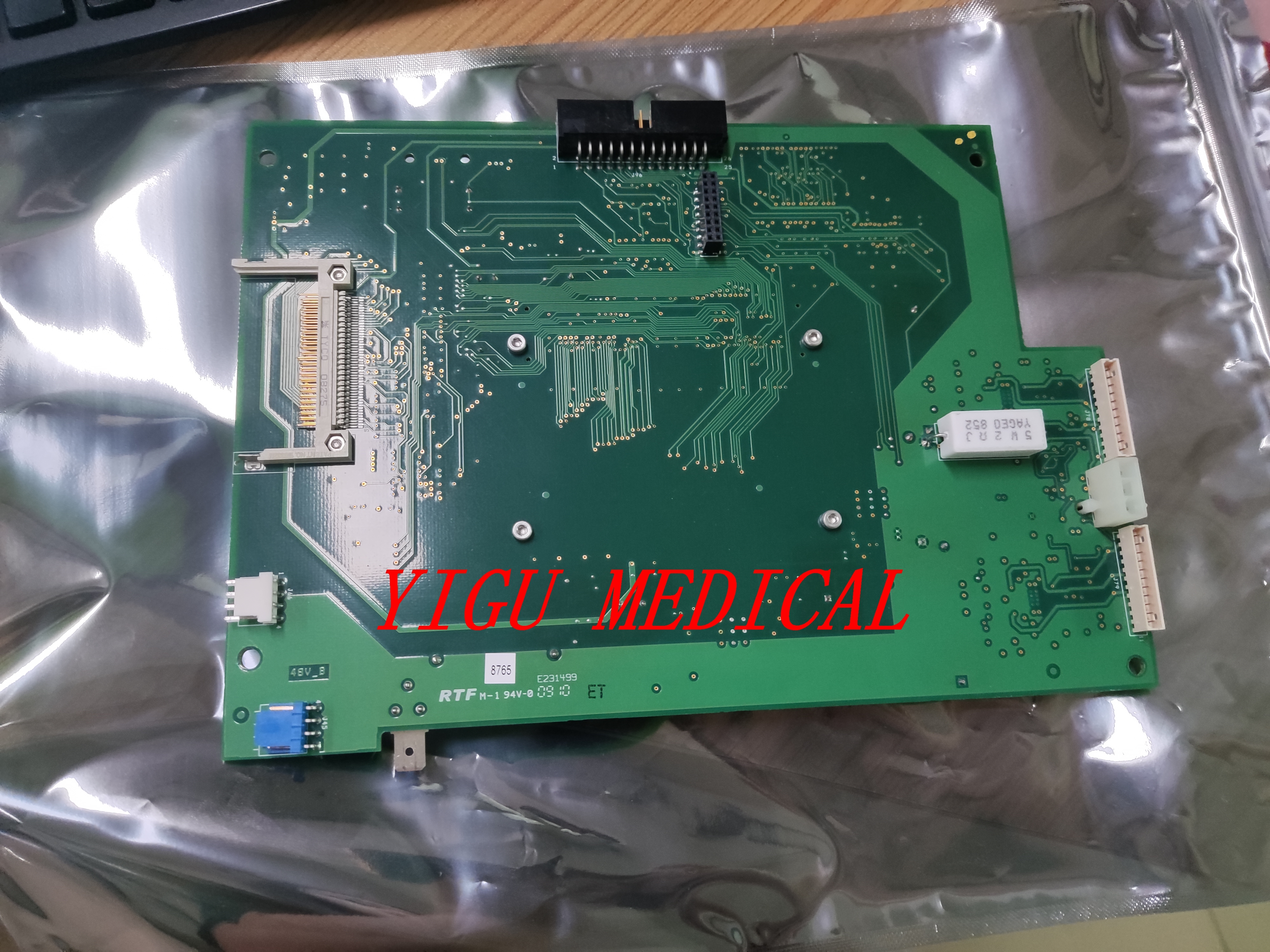

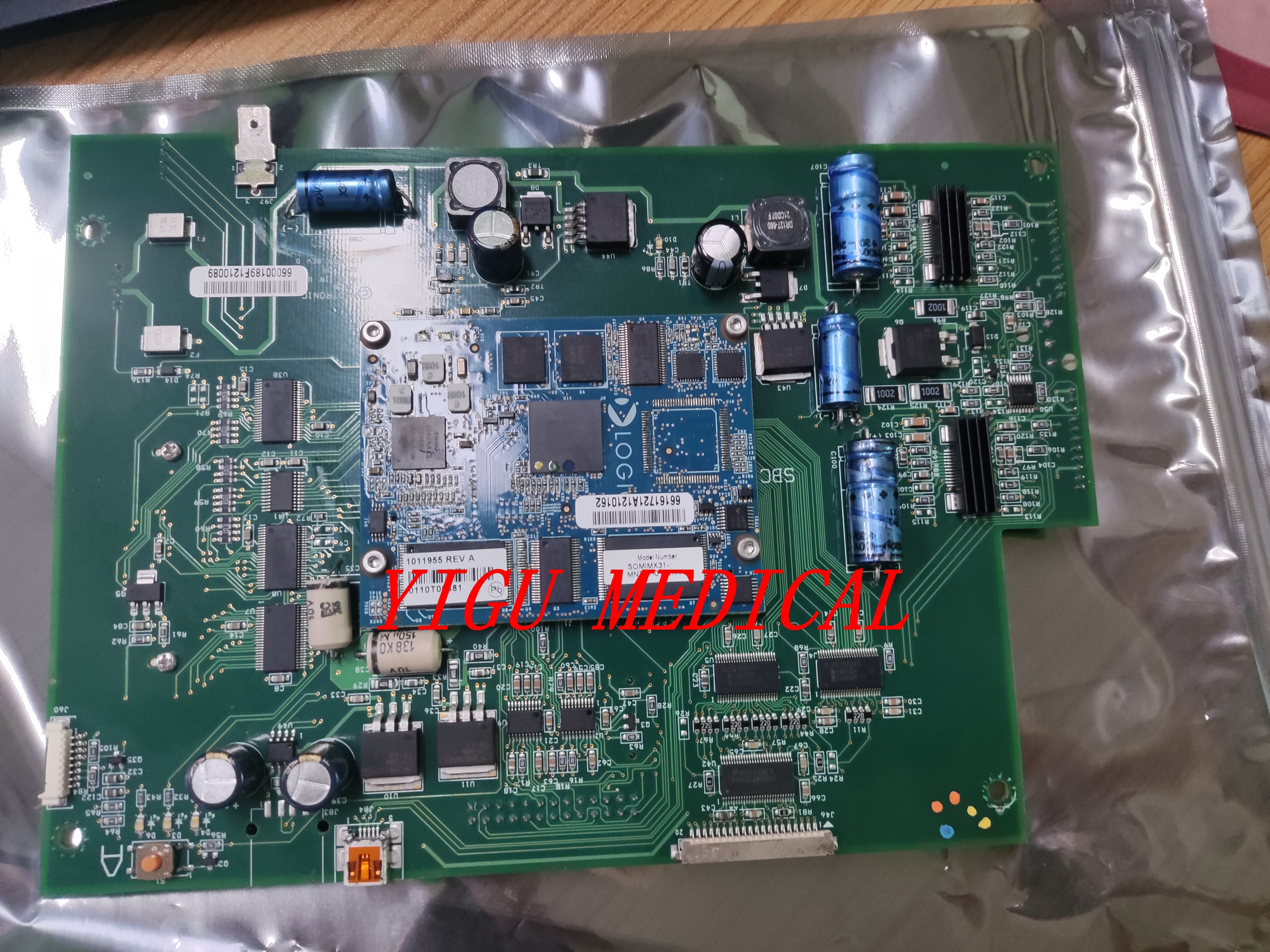

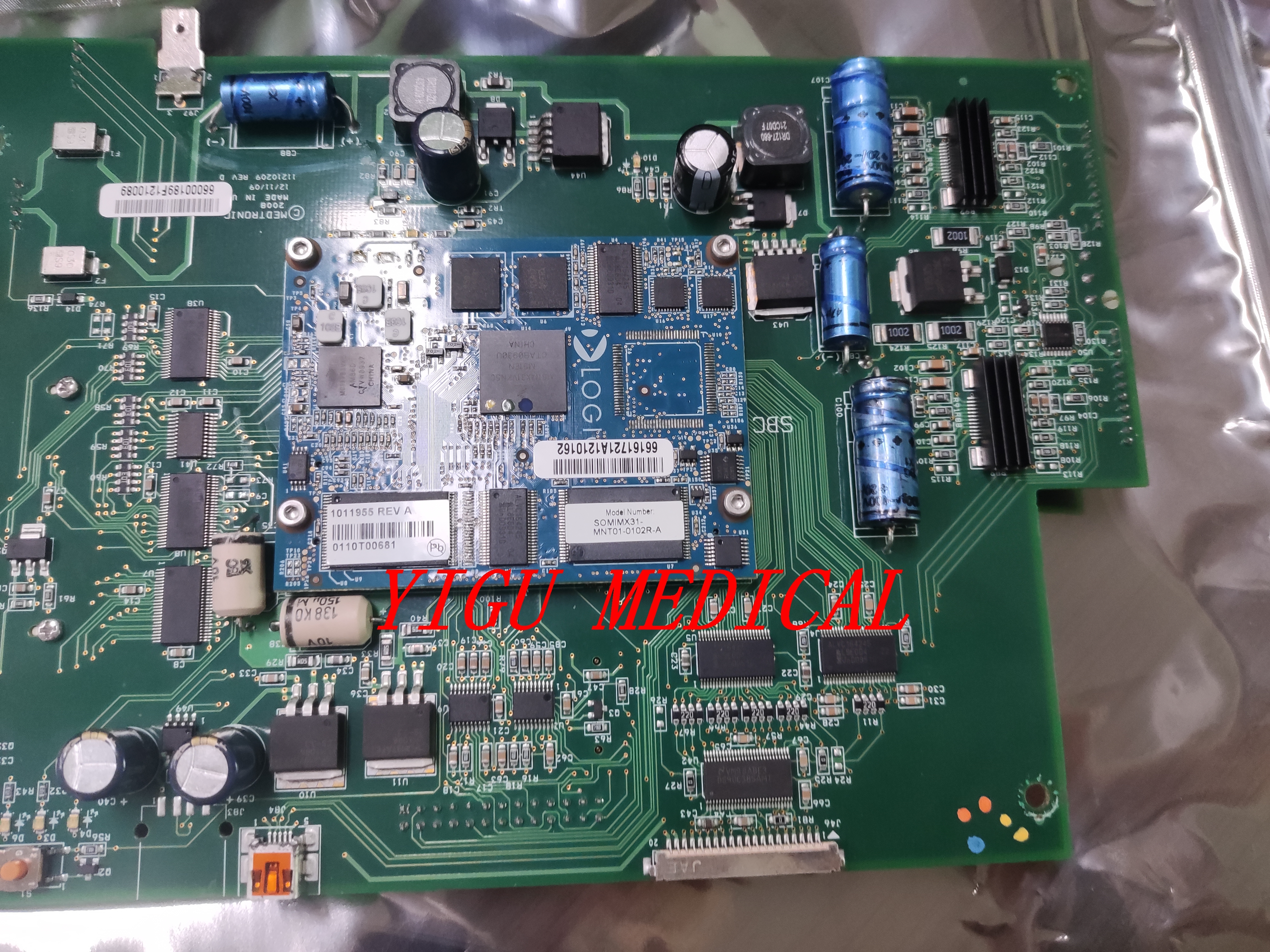

Medtronic IPC Motherboard 1011955 REV A IPC Mainboard with 3 Months Warranty
Overview: The Core of an Implantable Pulse Generator
The term **"Medtronic IPC Motherboard"** does not refer to a standard, user-serviceable computer motherboard. Instead, it describes the central, hybrid electronic module found inside an **Implantable Pulse Generator (IPC)**—the "can" or main device of a **Cardiac Pacemaker** or **Implantable Cardioverter-Defibrillator (ICD)**.
This "motherboard" is a marvel of micro-engineering, designed for extreme reliability, minimal power consumption, and long-term operation within the human body. It is the brain and control center of the life-sustaining device.
Key Functions of the Medtronic IPC Motherboard
The primary role of this sophisticated circuit assembly is to sense the heart's intrinsic rhythm and deliver therapeutic electrical pulses when needed. Its key functions include:
1. **Sensing and Amplification:**
* It continuously receives tiny electrical signals (in the millivolt range) from the heart via the **leads**.
* Highly specialized circuitry amplifies these signals while filtering out interference from muscle noise (myopotentials) and other sources.
2. **Analysis and Decision Making:**
* The onboard microcomputer, powered by a custom, ultra-low-power microprocessor, runs complex algorithms.
* It analyzes the amplified signals in real-time to determine if the heart is beating normally.
* For pacemakers, it detects if a beat is too slow (bradycardia) or paused.
* For ICDs, it performs sophisticated morphology analysis to detect dangerously fast heart rhythms (ventricular tachycardia - VT or ventricular fibrillation - VF).
3. **Therapy Delivery:**
* **Pacing:** Upon detecting a slow rhythm, it triggers a controlled, low-energy electrical pulse from the output capacitors to stimulate the heart muscle.
* **Cardioversion/Defibrillation:** For an ICD, if a life-threatening rhythm is detected, the motherboard commands the charging circuit to rapidly charge a large high-voltage capacitor. It then delivers a high-energy shock (up to 35-40 joules) to reset the heart's rhythm.
4. **Data Logging and Diagnostics:**
* The motherboard contains non-volatile memory that continuously records key data, such as:
* Episode logs (when and why therapy was delivered).
* Electrograms (EGMs) – recordings of the heart's electrical activity during an event.
* Lead impedance measurements to check the health of the leads.
* Battery voltage trends.
* This data is crucial for clinicians during follow-up visits.
5. **Telemetry and Communication:**
* The motherboard includes a radio frequency (RF) telemetry circuit. This allows the IPC to communicate wirelessly with an external **programmer** (like the Medtronic CareLink® programmer).
* This link is used to:
* Interrogate the device and retrieve stored data.
* Adjust therapy settings (pacing rate, energy output, etc.).
* Perform non-invasive tests.
6. **Power Management:**
* This is a critical function. The motherboard meticulously manages power drawn from the built-in **Lithium-Iodide or Lithium-Silver Vanadium Oxide battery**.
* It uses advanced power-saving techniques, like putting the microprocessor into "sleep" mode between heartbeats, to maximize the device's longevity (typically 5-10 years or more).
Common Points of Reference and "Failure"
It's important to understand that the motherboard itself is not a field-replaceable part. The entire IPC is a single, sealed unit.
* **End-of-Service (EOS) / Elective Replacement Indicator (ERI):** The primary reason for device replacement is battery depletion, not motherboard failure. The motherboard is designed to last the entire life of the battery.
* **"Failure" Modes:** If the electronic module fails, it is an extremely rare event. Modern IPCs have an exceptional reliability record. In the event of a suspected internal failure, the entire device must be surgically replaced.
